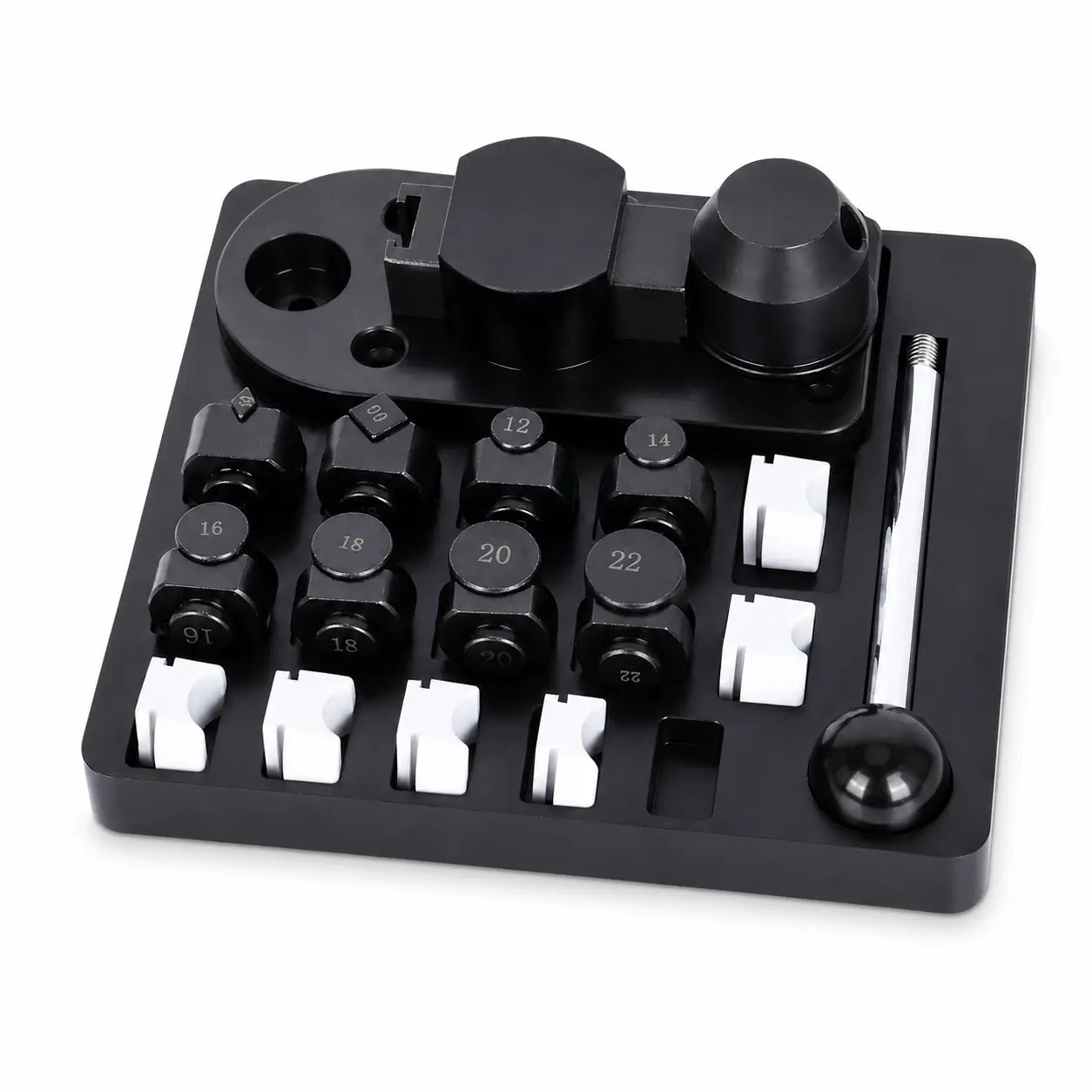

Ring bending tool with black plastic storage base showing 8 nylon molds including 12, 14, 16, 18, 20, 22mm round profiles and 60 and 90 degree angle formers, with removable lever and white nylon jaw inserts

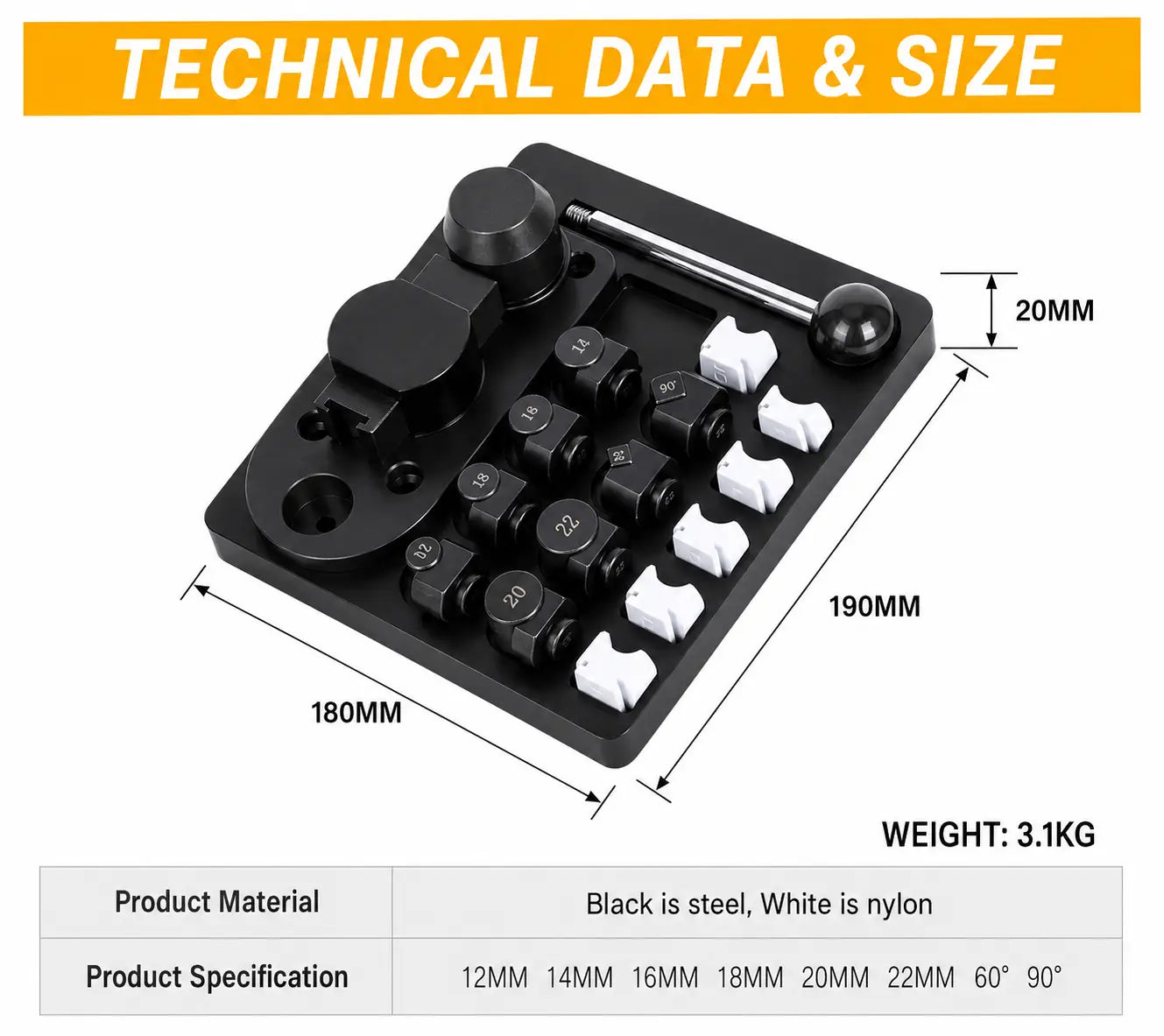

Ring bending tool technical data and size diagram showing 180x190x20mm dimensions, 3.1kg weight, steel and nylon material table, and mold specifications 12-22mm plus 60 and 90 degree

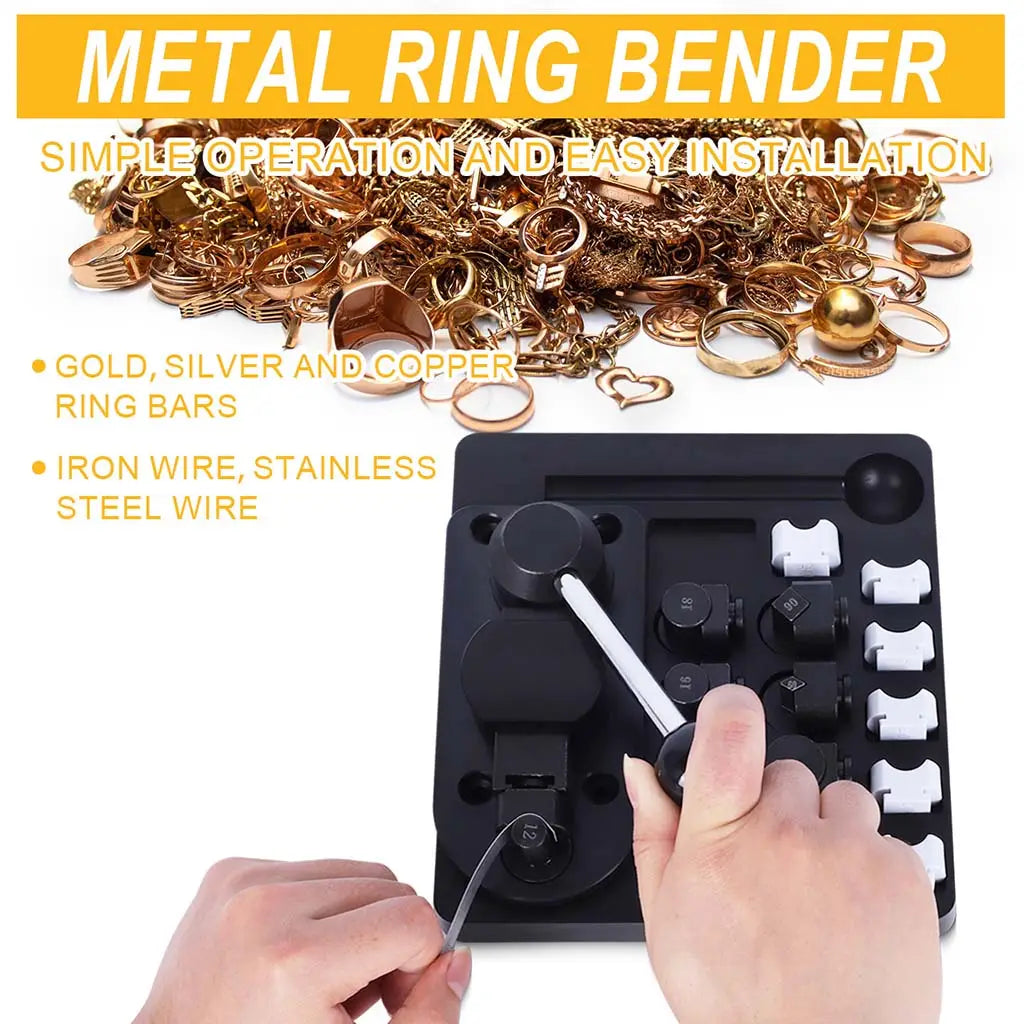

Metal ring bender in use with hands operating the lever to bend metal strip, with callouts for compatible materials including gold, silver, copper ring bars and iron wire

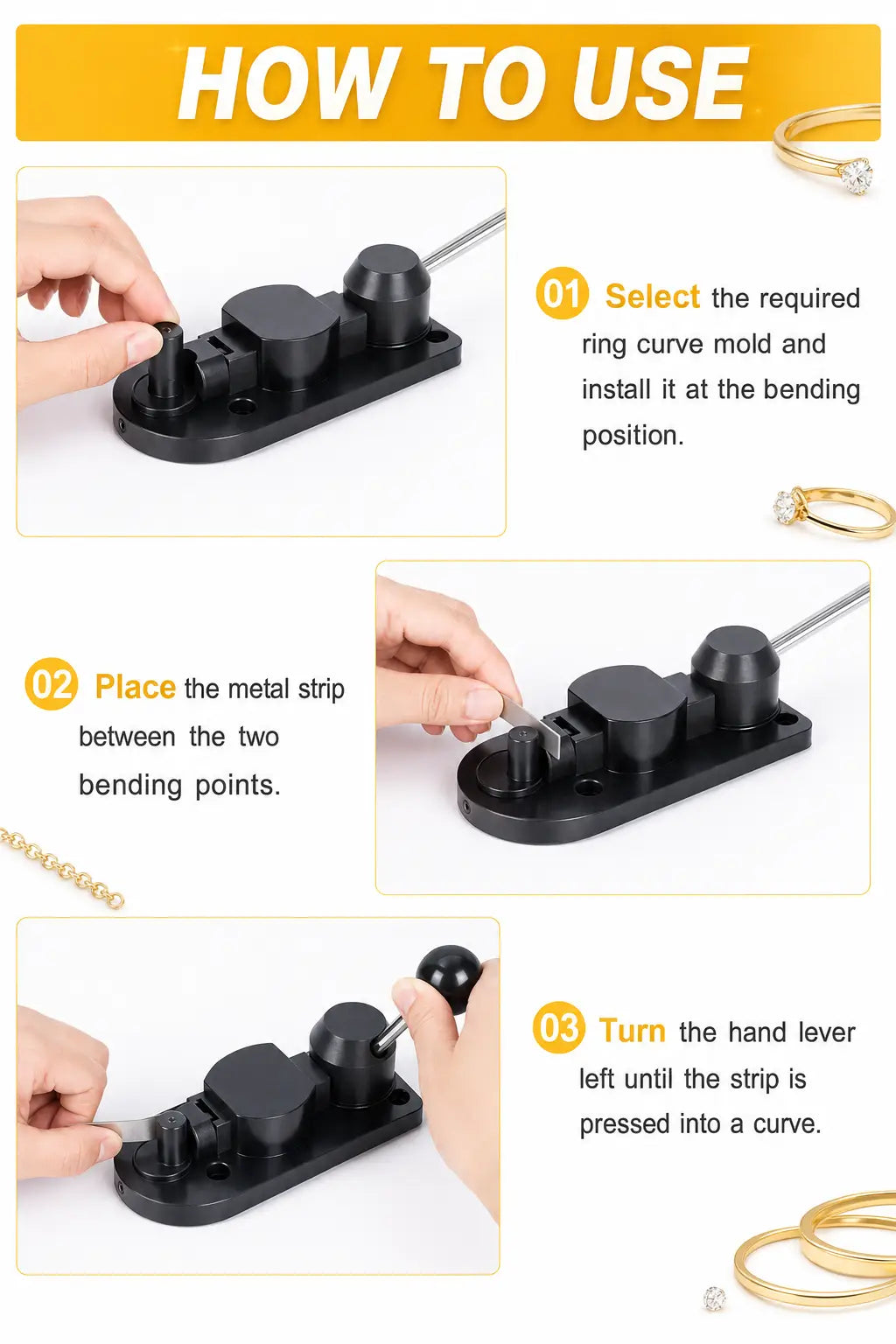

Ring bending tool how-to-use guide showing 3 steps: select and install the ring curve mold, place metal strip between bending points, then turn the hand lever to press strip into a curve

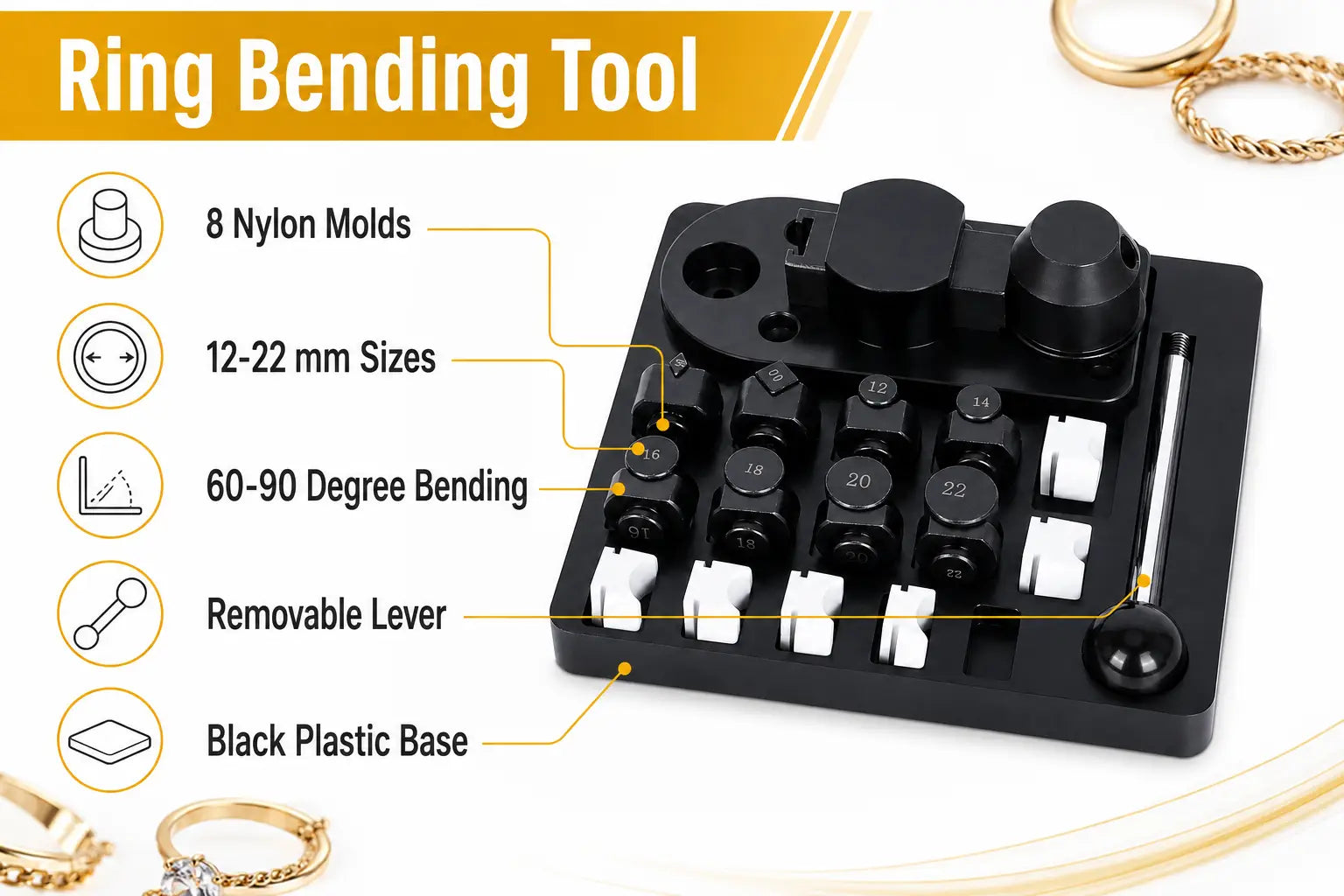

Ring bending tool feature callout infographic highlighting 8 nylon molds, 12-22mm sizes, 60-90 degree bending, removable lever, and black plastic base with gold jewelry rings in background

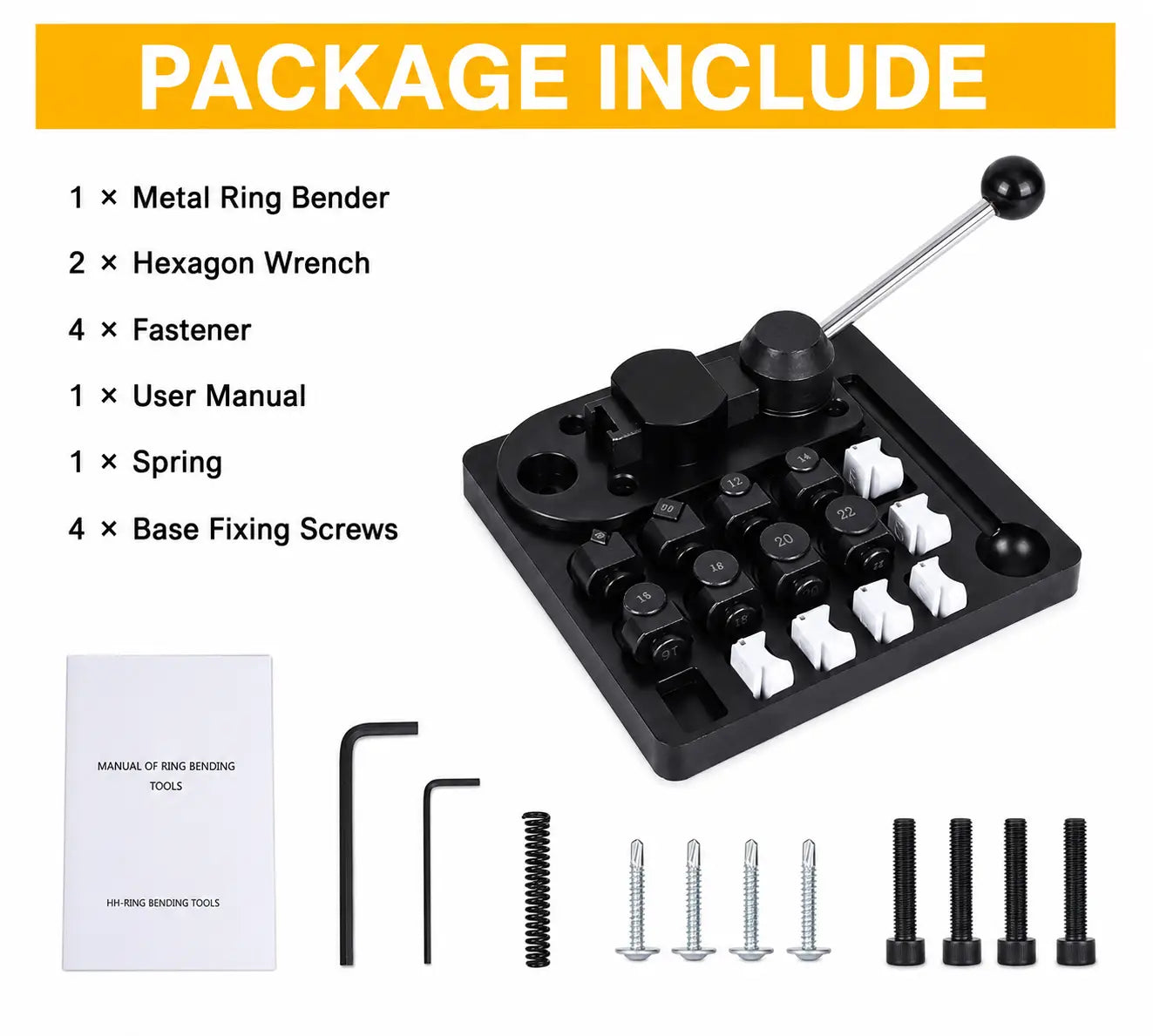

Ring bending tool package contents: 1x metal ring bender, 2x hex wrenches, 4x fasteners, 1x user manual, 1x spring, and 4x base fixing screws laid out on white background

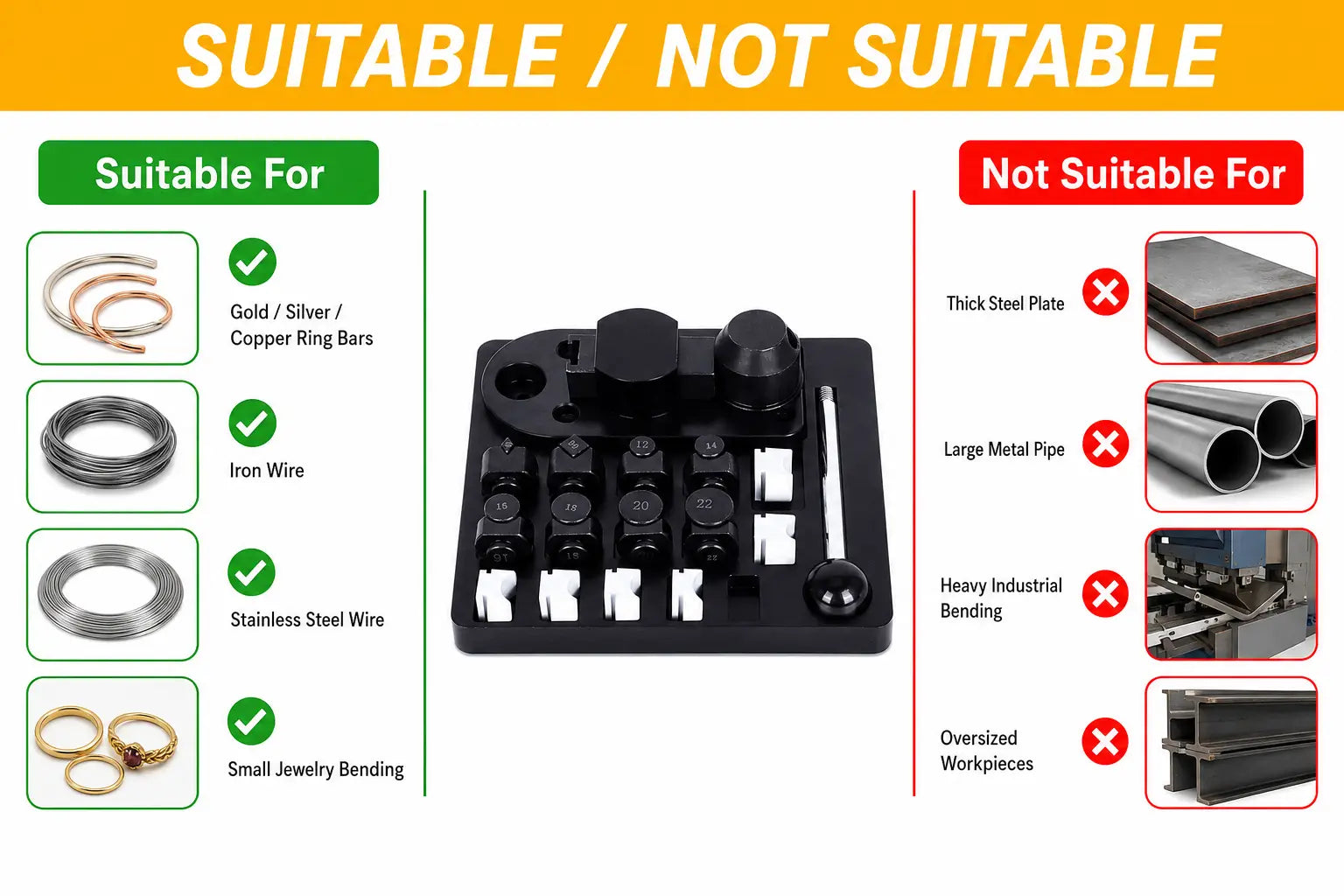

Ring bending tool suitable and not suitable comparison: suitable for gold, silver, copper ring bars, iron wire, stainless steel wire, and small jewelry bending; not suitable for thick steel plate, large metal pipe, heavy industrial bending, or oversized workpieces

Ring Bending Tool | 8 Nylon Molds 12-22mm | 60 and 90 Degree Formers

€169,99 EUR
Quantity:
American Express Apple Pay Diners Club Discover Google Pay JCB Maestro Mastercard Union Pay Visa

About This Ring Bending Tool

This manual bench-mount ring bending tool shapes compatible metal strip and wire around interchangeable nylon molds. The set includes six round profiles from 12 to 22 mm and two angular formers at 60° and 90°, covering a wide range of jewelry forming tasks in one organised set.

After securing the steel mechanism to a stable bench, install the selected mold, position the prepared workpiece, and turn the handle smoothly to develop the shape in controlled stages. Nylon contact surfaces help reduce direct metal-to-metal marking. Suitable for gold, silver, copper, brass, and compatible jewelry alloys within the stated material capacity.

Mold Selection and Material Limits

Mold Typical Use
12 / 14 / 16 / 18 / 20 / 22 mm Select the round profile closest to the intended form; verify finished size with a ring gauge or measuring tool.
60° former Creates a controlled 60° angular bend in compatible strip or wire.
90° former Creates a controlled right-angle bend in compatible strip or wire.
Material capacity Up to 2 mm strip thickness or 3 mm wire diameter; anneal where appropriate and account for springback.

Best For / Not For

Best For Not For
Round forms from 12 to 22 mm Round forms outside the 12-22 mm range
60° and 90° jewelry components Strip thicker than 2 mm or wire over 3 mm diameter
Gold, silver, copper and brass work Hardened steel or low-ductility stock
Small jewelry workshops and training benches Powered or industrial-volume forming
Controlled manual forming and prototyping Projects requiring guaranteed final size without measurement

Technical Specifications

Product Type Manual bench-mount ring and wire bending tool
Round Mold Sizes 12, 14, 16, 18, 20, 22 mm
Angle Formers 60° and 90°
Mold Material Nylon
Frame Material Steel
Max Strip Thickness 2 mm / 0.08 in
Max Wire Diameter 3 mm / 0.12 in
Product Dimensions 180 x 190 x 20 mm / 7.1 x 7.5 x 0.8 in
Weight 3.1 kg / 6.8 lb
Mounting Bench mount with included fixing screws
Storage Base Black plastic with dedicated mold positions

Pro Tips

  • Secure the mechanism to a solid bench before applying force — do not rely on the storage base alone to resist handle movement.
  • Anneal compatible metal where appropriate, allow it to cool, and clean it before forming to reduce required force and improve results.
  • Apply pressure gradually and inspect the workpiece between passes rather than forcing the full bend in one movement.
  • Allow for springback and verify the finished form with a ring gauge or caliper — do not rely solely on the mold marking for final size.
  • Keep mold contact surfaces clean and follow the supplied instructions for lubricating moving metal parts; keep lubricant away from grip surfaces.

FAQ

Which round sizes are included?
The set includes six round forming sizes: 12, 14, 16, 18, 20, and 22 mm.

What are the 60° and 90° molds for?
They form compatible metal strip or wire into controlled angular profiles rather than round rings.

What material thickness can it handle?
Up to 2 mm strip thickness or 3 mm wire diameter. Metal type, temper, and cross-section affect the required force and result.

Does it need to be mounted to a bench?
Bench mounting is strongly recommended for controlled operation. Fixing screws are included for securing the tool to a suitable work surface.

Will a 20 mm mold always produce an exact 20 mm finished ring?
No. Workpiece thickness, alloy hardness, starting length, and springback can all change the final diameter — always measure after forming.

Which metals are suitable?
Gold, silver, copper, brass, and compatible jewelry alloys within the stated capacity. Do not use hardened steel or stock outside the stated limits.

What's Included

  • 1 x ring bending tool with black plastic storage base
  • 8 x forming molds: 12 / 14 / 16 / 18 / 20 / 22 mm, 60° and 90°
  • 4 x base fixing screws
  • 2 x hex keys
  • 4 x fasteners
  • 1 x spring mechanism component
  • 1 x user manual
