17-Inch Vibratory Tumbler Polisher | 12L Jewelry Batch Polishing and Deburring Machine
About This Vibratory Tumbler
This 250W vibratory tumbler uses a 17-inch, 12L bowl to process batches of jewellery and small parts with separately purchased ceramic, plastic or steel media, supporting polishing, deburring and general surface finishing.

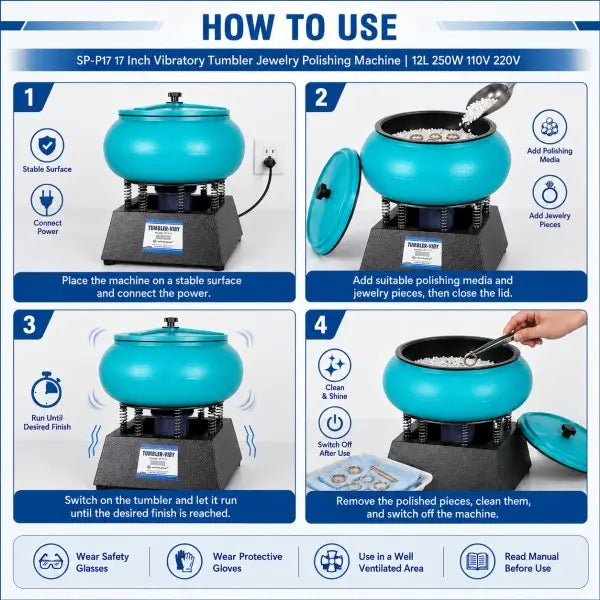

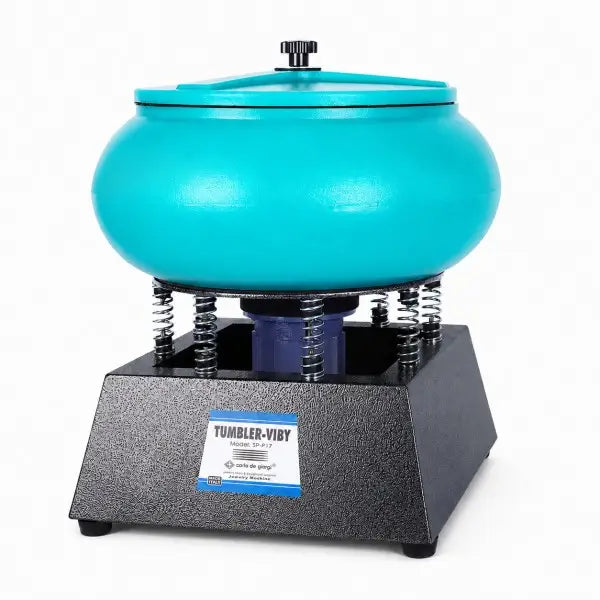

This machine places a rounded 17-inch processing bowl on a spring-supported vibrating base. Once suitable media and workpieces are loaded and the lid is secured, the 250W drive produces vibratory movement that keeps the contents in repeated contact. The 12L rating is the bowl volume for workpieces and media combined — not a workpiece-only allowance or a weight limit. No timer, variable-speed control or automatic shutoff is specified, so cycle monitoring and process selection remain the operator's responsibility.
Voltage Selection Guide
| Decision | Purchase and Setup Guidance |
|---|---|
| 12L capacity | Treat 12L as the total bowl volume available to the workpieces and media together. It is not a maximum load by weight. |
| Ceramic media | Confirmed as compatible. Select the shape, grade and process according to the workpiece material and the media supplier's instructions. |
| Plastic media | Confirmed as compatible. Use only a formulation suitable for the workpiece and intended finishing stage. |
| Steel media | Confirmed as compatible. Verify material compatibility and separation requirements before processing. |
| Voltage version | Select either 110V or 220V to match the installation site. Automatic universal-voltage operation is not stated. |
| Cycle planning | No fixed cycle time is provided. Establish the process using the workpiece, media and consumable suppliers' guidance, then inspect progress between stopped cycles. |
Best For / Not For
| Best For | Not For |
|---|---|
| Batch polishing rings and pendants | Work requiring magnetic-pin access into fine dead ends |
| Processing chains and groups of small jewellery items | Single parts too large for the 17-inch bowl |
| Deburring compatible small parts | Loads selected only by volume without checking material and media compatibility |
| Studios needing up to 12L combined bowl volume | Processes requiring confirmed variable-speed or timer control |
| Users prepared to select media separately | Buyers expecting polishing media in the package |

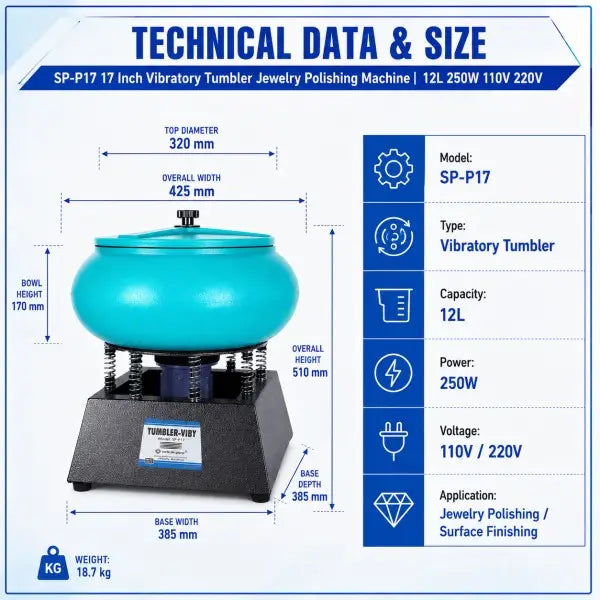

Technical Specifications
| Machine type | Vibratory bowl tumbler |
| Bowl size | 17 in (approximately 432 mm) |
| Bowl capacity | 12L; workpieces and media combined |
| Power | 250W |
| Voltage options | 110V or 220V; select the correct version before purchase |
| Machine weight | Approximately 18.7 kg (41.2 lb) |
| Compatible media | Ceramic, plastic or steel tumbling media |
| Control | Power switch; timer and speed adjustment are not specified |
Pro Tips
- Choose the 110V or 220V version for the actual supply at the installation site before ordering.
- Match media material, shape and grade to the workpiece and finishing goal rather than using one media type for every job.
- Count workpieces and media together when planning against the 12L capacity; do not treat bowl volume as a weight rating.
- Place the approximately 18.7 kg machine on a level, rigid bench with enough clearance for vibration.
- Switch off and disconnect power, then wait for all movement to stop before opening the lid, inspecting a batch or changing media.
FAQ
Does the 12L capacity refer to workpieces only?
No. The stated capacity covers the workpieces and tumbling media combined in each cycle. Plan your load accordingly.
Is polishing media included?
No. Media must be purchased separately. The listed compatible categories are ceramic, plastic and steel tumbling media.
Which voltage should I choose?
Select the 110V or 220V version that matches the installation site's power supply. Universal automatic voltage switching is not specified — the two versions are not interchangeable.
Does the machine have a timer or speed control?
No timer or variable-speed control is specified. The visible control is a side-mounted power switch. Monitor cycles manually and stop the machine to inspect progress.
What materials can it process?
The listed applications include batch polishing of rings, pendants, chains and other jewellery items, along with deburring and general surface finishing of small compatible parts.
What should I do if the machine vibrates excessively or does not perform as expected?
First confirm the machine is on a level, rigid surface and that the load is within the 12L combined capacity. If the issue persists, contact the Musttool team at musttool01@gmail.com with your order details and a description of the problem.

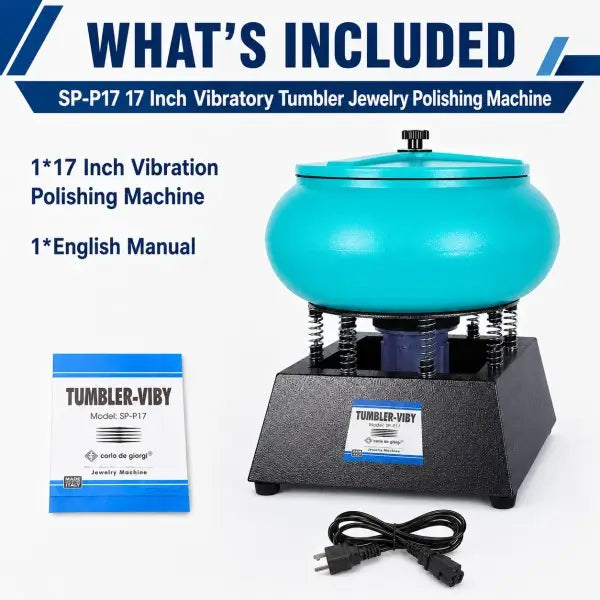

What's Included
- 1 x 17-inch vibratory tumbler polishing machine
- 1 x English manual
- Material-appropriate ceramic, plastic or steel tumbling media (required, not included)
- Any process additives or liquids required by the selected media system (required, not included)
- Suitable equipment for separating and cleaning finished workpieces (required, not included)
Support
Questions about setup, compatibility, or order status? Contact the Musttool team at musttool01@gmail.com. We respond within 24 hours on business days.
